Kjøling Kjølepads EC360 Platinum
Kjølepads

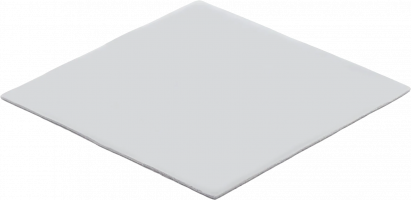

EC360 Platinum EC360P151
16.6 W/mK, 50 x 50mm, 2.0mm
319,-
På vei til lager
Kjøp nå

The EC360® PLATINUM series presents the high-end variant of high-performance thermal pads. The pads have best thermal conductivity of 16.6 W/mK, more than high-end thermal pastes and are suitable for a variety of applications including CPUs and GPUs (that are cooled by thermal pads), memory chips and other electrical components. They perform particularly well for water cooling systems and are easy to use. The pads are not adhesive, but stick a little, so they can be easily positioned. It is the perfect solution for heat-transfer in adverse surface conditions when the use of thermal paste is unsuitable. Handling is particularly safe, as the pads are electrically isolating and there is no risk of short-circuiting. Additionally, they can easily be cut using a scissor, which allows trimming to the perfect size for any surface. Installation Recommendation: Clean surfaces from dirt and other possible residue. If applicable, isopropyl 90% alcohol is recommended to ensure a clean surface. Remove one of the protective layers and place the exposed side of the thermal pad facing the surface of the chip. Once positioned gently press on it to make it stick. Remove the second protective layer and install the heatsink.

Spesifikasjoner
Varmeledningsevne16.6 W/mK
Relativ tetthet3.5 g/cm³
Hardhet40 Shore C
Strekkbarhet55 kg/cm²
Spesifikk volumresistivitet2.8*10 11 Ohm-cm
Gjennomslagsspenning5.0 kV / mm
Driftstemperatur-40 - 220 °C
BrennbarhetVO
Dimensjoner
Dimensjoner50 x 50 mm
Tykkelse2.0 mm
