Kjølelim

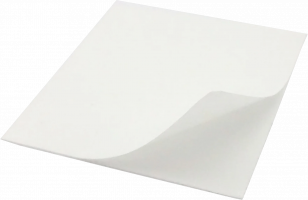

EC360 Tape EC360A001
1.2 W/mK, 100 x 100mm, 0.15mm
A general rule for thermal adhesive is that it either has good adhesion properties or conducts heat well. The EC360® TAPE series has its focus on thermal conductivity. Excellent thermal conduction properties make it the perfect choice for particularly challenging applications, which require a higher thermal conductivity than standard thermal tapes. It is notable however that it is not suitable for every application, like ataching very heavy heatsinks. Handling is particularly safe, as the pads are electrically isolating. The thermal adhesive is double-sided and both sides covered with a protective layer, that can be removed upon installaton. It can be easily cut using a scissor, which allows trimming it to the perfect size for any surface.
| Varmeledningsevne | 1.2 W/mK |
|
| Driftstemperatur | -40 - 120 °C |
|
| Dimensjoner | 100 x 100 mm |
|
| Tykkelse | 0.15 mm |
|
